Quote NowItem Code: 7102

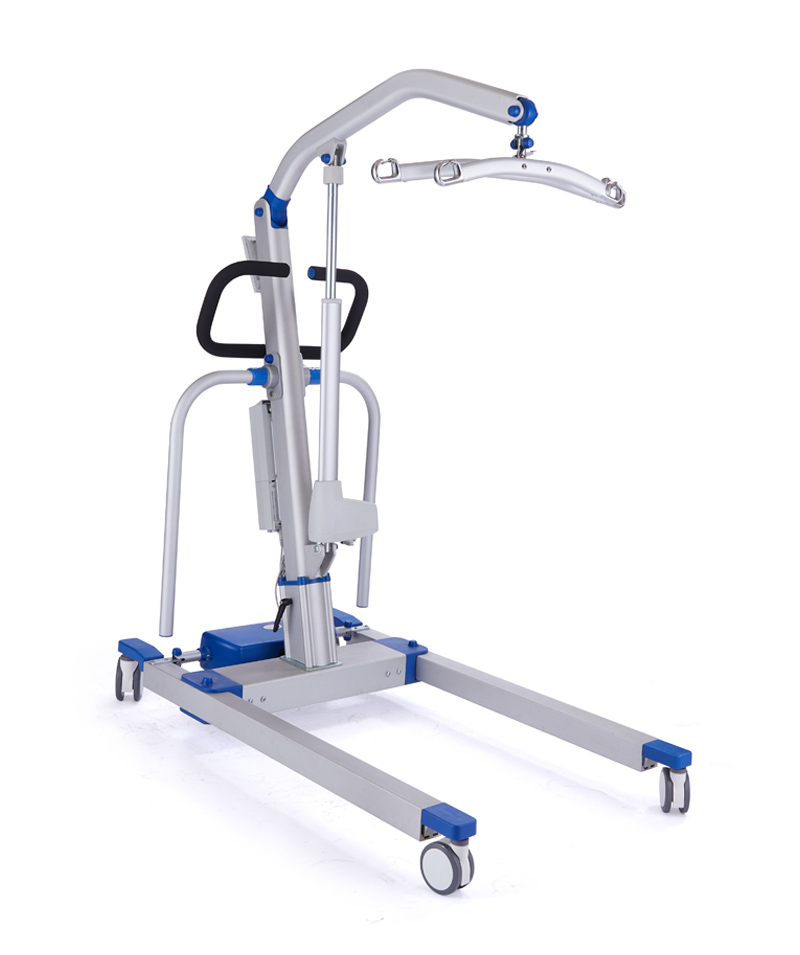

Item 7102 is an aluminum lift for bariatric use with a weight capacity of 320kg. It allows patients to be transferred from floor positions, beds, chairs and other support surfaces with comfort and safety as an ideal floor lift. It is TUV certified per ISO 10535.
• 320kg max load especially suitable for shape or widely use in hospital
• Safe and stable with electrical operation system
• Convenient for electrical adjustment of leg opening & folding

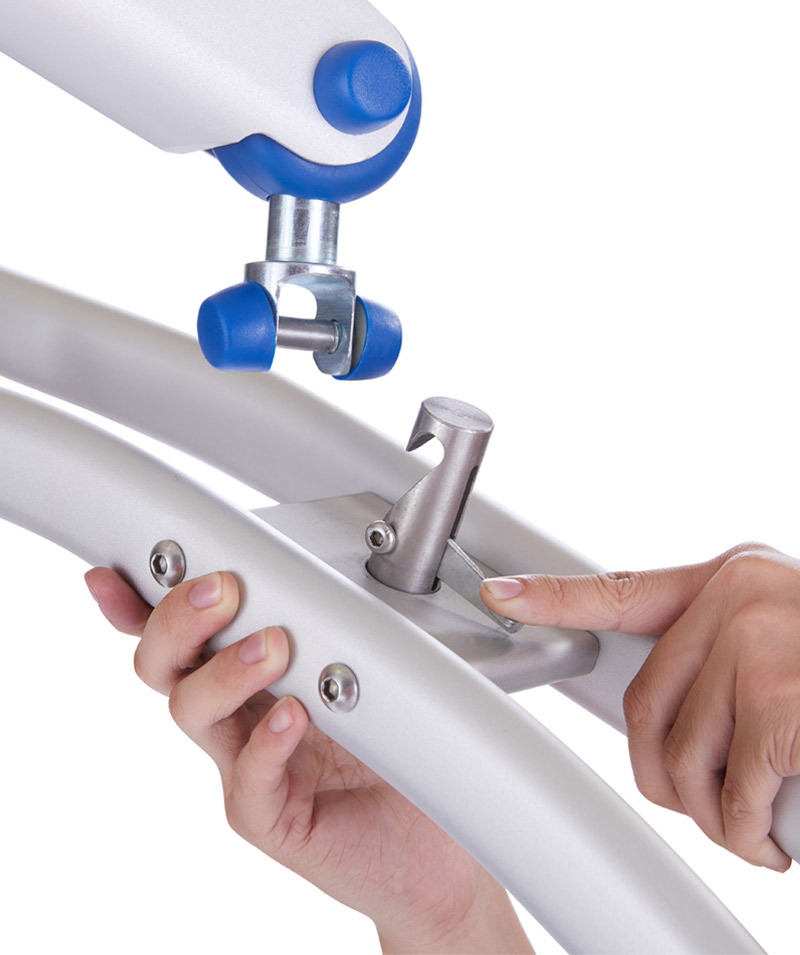

• Safer and more stable for quick release double sling bar and four suspensions
• Armrest reassure the stability for user when gait training and toileting
• Rear wheels with brakes for security
• Total height adjustment in 3 positions
• Easy knock-down mast for easy storage and transfer
| Item No. | 7102 | ||
| Max. load | 320kg | Leg clearance (floor to top of legs) | 15.5cm |
| Overall height | 215.5cm | Height (floor to the middle of push handle) | 110~130cm |
| 210.5cm | 105~125cm | ||
| 205.5cm | 100~120cm | ||
| Mast height | 156cm | Lifting height range | 64~194cm |
| 151cm | 59~189cm | ||
| 146cm | 54~184cm | ||
| Base length | 150cm | Length from spreader bar to actuator | 45.3(+/-3)~69(+/-3)cm |
| Leg length | 92.5cm | Push handle width | 53cm |
| External base width closed-opened | 76.5~119(+/-2)cm | Spread bar width | 73cm |
| Internal base width closed-opened | 64~106.5(+/-2)cm | N.W. | 52kg |
| Under base height | 8.5cm | Turning diameter | 159.5cm |
